raw material
After grinding

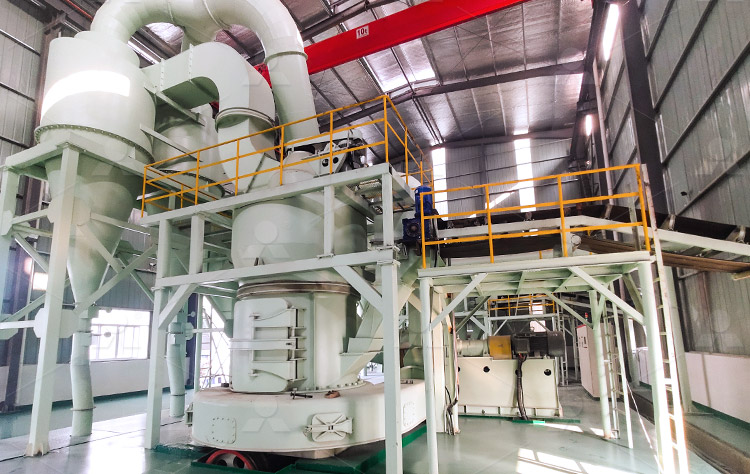

Quartz Stone Grinding Mill
The composition of quartz stone is silicon dioxide, which is very stable in physical and chemical properties. It has brittleness, pyroelectricity, piezoelectricity and other characteristics. It can be made into glass after melting. Glass products such as pipes; also can be used as ceramics, refractories, abrasive materials, metallurgy, construction, chemical, electronics, aerospace and other industrial raw materials.

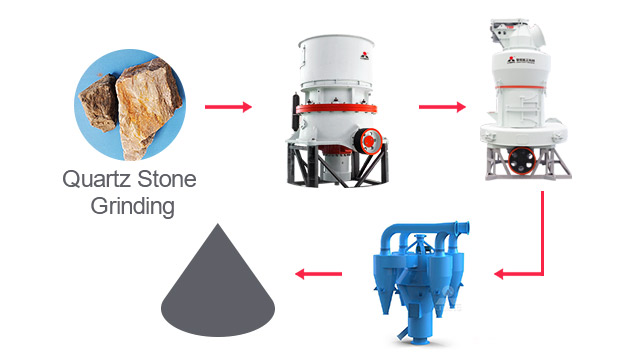

PROCESSING TECHNOLOGY
Quartz powder can be generally divided into coarse powder processing (0-3MM), fine powder processing (20 mesh-400 mesh), and ultrafine powder deep processing (400 mesh-1250 mesh) and micro powder processing (1250 mesh-3250)
-
1The first stage: Crushing
Large pieces of quartz stone are crushed by the crusher to the feed fineness (15mm-50mm) that can enter the mill.
-
2The second stage: Milling
The crushed small piece of quartz stone is sent to the silo by the hoist, and then sent to the grinding chamber of the mill by the vibrating feeder for grinding.
-
3The third stage: Grading
The ground quartz powder is classified by a classifier, and the unqualified powder is classified by the classifier and returned to the host for re-milling.
-
4The fourth stage: Collecting
Fine powder complies with the fineness and airflow go through the pipe into the dust collector for separation and collection. The finished powder will be transmitted to bucket elevator by screw conveyor and lifted into Silo for storage by Bucket elevator , then packed uniformly by powder tanker or automatic packing machine.
