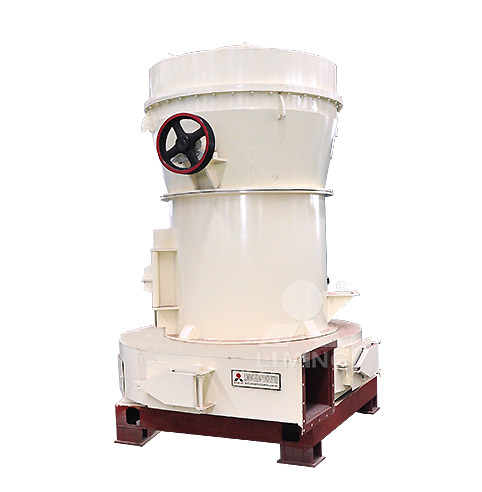

Raymond mill

Level:

Processed Materials:
Limestone, calcite, dolomite, barite, talcum, calcium carbonate, gypsum, bentonite, etc.

Applications:
Calcium carbonate crushing processing, gypsum crushing processing, power plant desulfurization, non-metallic ore pulverizing, pulverized coal preparation.

Capacity: 0.8-9.5T/H
Input size: 20-30mm

  • Introduction
  • Specifications
  • Technical Advantages
  • Working Principle

Raymond mill is widely used in minerals grinding process of metallurgy, building materials, chemicals, mining and other fields, and is applied to various non-flammable and non-explosive materials under 7 moth hardness and less than 6% humidity. The Output fineness is between 613μm ~ 44μm, can meet the different user requirements.

MTW Trapezium Mill, which is upgraded products of Raymond Mill, very popular and hot sale, check now.

Model Max feed size (mm) Output fineness Fineness of final product (mm)
0.165 0.075 0.044
capacity (t/h)
3R2115 15 0.044-0.165 1.2-1.8 0.6-1.2 0.6-1.0
3R2615 15-20 0.044-0.165 1.8-2.5 1.2-1.8 0.8-1.2
3R2715 15-20 0.044-0.165 2.3-2.8 1.2-1.8 0.8-1.2
3R3016 15-20 0.044-0.165 2.6-3.2 1.9-2.6 1-1.9
4R3216 20-25 0.044-0.165 3.2-4.5 2.4-3.1 1.8-2.5
Model Max feed size (mm) Output fineness Fineness of final product (mm)
0.165 0.075 0.044
capacity (t/h)
3R2115 15 0.044-0.165 1.2-1.8 0.6-1.2 0.6-1.0
3R2615 15-20 0.044-0.165 1.8-2.5 1.2-1.8 0.8-1.2
3R2715 15-20 0.044-0.165 2.3-2.8 1.2-1.8 0.8-1.2
3R3016 15-20 0.044-0.165 2.6-3.2 1.9-2.6 1-1.9
4R3216 20-25 0.044-0.165 3.2-4.5 2.4-3.1 1.8-2.5

1. Strong system, high screening rate: up to 99%, fine output fineness.

2. Easy to control and maintain, reliable operation. The core components adopts high-performance wear-resistant materials, high wear resistance, cost-saving.

1. The whole structure of Raymond mill is composed of mainframe, separator, pipeline installation, blower, jaw crusher, hopper, electromagnetic vibrating feeder and electric control motor. The host of Raymond mill contains air volute, blade, grinding roller, grinding ring, shell and motor.

2. Raw material is crushed by jaw crusher to the size required, then output products are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder processing.
