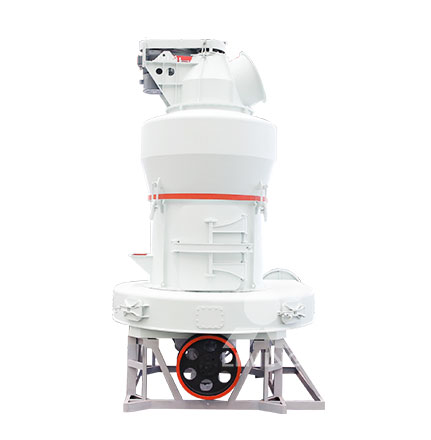

MTW European Type Trapezium Mill

MTW
European Type Trapezium Mill

Processed Materials:

Limestone, gypsum, quartz, calcite, dolomite, barite, talc, calcium carbonate, bentonite, slag, etc.

Applications:

limestone desulfurization in power plant, metallurgy, non-metallic mineral powder making, heavy calcium carbonate processing, building materials and chemical industry

Capacity: 3-50TPH

Input size: 30-50mm

Introduction

Hot Sale: patented technology, high productivity, environmental protection and energy saving

As we know, Traditional Raymond mill, Pendulum Mill are welcomed in the world. But, MTW European Trapezium Mill is the upgrade products, which has patented technology, stable performance, high productivity, environmental protection and energy saving, committed to large-scale non-metallic mineral powder making.

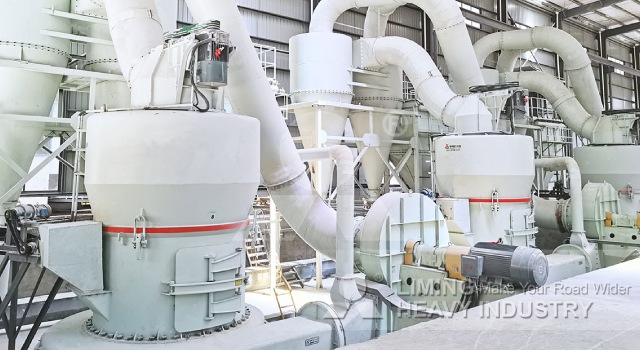

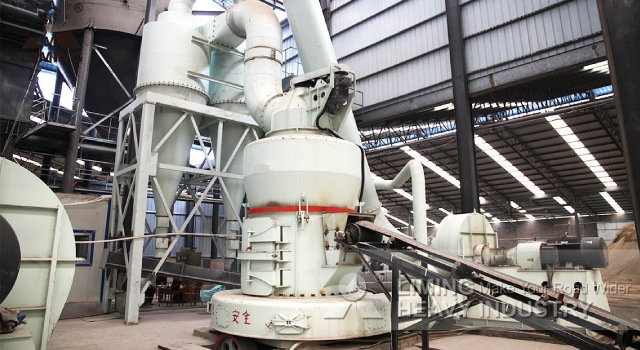

Mill Gallery:

Product parameter

Technical Advantages

  • 1Linkage supercharging device of rollers, stable operation and advanced productivity.
  • 2High efficiency, Bevel gear overall drive, less energy loss, the production capacity increased by 20% under the same power condition.
  • 3Patented Technology, With reliable and advanced technology of Inner automatic thin-oil lubricating system.
  • 4Arc air channel, less air flow loss, better material fluidity.
  • 5Special design of rollers and ring, replaceable curved shovel edge, higher efficiency and lower cost-in-use.
  • 6No resistance snail shell.
  • 7Adjustable output size, efficient powders production.
  • 8High efficiency and precision of powders collection.
  • 9Humanized design, easy to use.
  • 10Environmental protection, unique air recycling system, together with advanced dust collector make environment much cleaner.

Working Principle

Qualified materials after crushing are evenly, quantitatively and continuously fed into the mill chamber of the main engine for grinding by the frequency conversion belt feeder. The ground materials are sent to the powder classifier by the airflow of the fan for classification. Under the action of the analyzer, the materials that do not meet the fineness requirements fall into the grinding chamber for re-grinding, and the qualified materials enter the cyclone powder collector through the pipeline with the airflow. Inside, it is separated and collected, and the finished powder is discharged through the discharge device. The separated air flow enters the fan through the return air duct at the upper end of the cyclone powder collector. The system operates under positive and negative pressure conditions, and the equipment is equipped with a pulse dust collector, which meets the national environmental protection standards.
