TGM Trapezium Mill

Level:

Processed Materials:
Limestone, calcite, dolomite, barite, talc, calcium carbonate, gypsum, bentonite, etc.

Applications:
Metallurgy, building materials, chemicals, mining, steel, highways, water conservancy and hydropower, refractories and other industries

Capacity: 3-36T/H
Input size: 25-40mm

  • Introduction
  • Specifications
  • Technical Advantages
  • Working Principle

Hot Sale:
Innovative grinding roller and ring design, high capacity, low energy consumption, better for the environment
Applied to various non-flammable and non-explosive materials under 9 moth hardness and less than 10% humidity.
High density and high precision impeller device, capacity increased by 50% and fineness up to 100mm

TGM Super Pressure Trapezium Mill a new type, high efficiency, energy-saving high-fine powder equipment, which adopts five proprietary technologies. It is mainly applied into metallurgy, building materials, chemical industry, mining, expressway, water conservancy and hydropower, refractory, steel and other industries. It is suitable for various non-flammable and non-explosive materials under 9 moth hardness and less than 10% humidity.

MTW Trapezium Mill, which is upgraded products of TGM Mill, very popular and hot sale, check now.

Model Max feeding size(mm) Output fineness (mm) Capacity (t/h)
TGM100 25 1.6~0.045 the finest 0.038 3~8.8
TGM130 30 1.6~0.045 the finest 0.038 6~13
TGM160 35 1.6~0.045 the finest 0.038 13~22
TGM130X 30 0.074~0.038 4~13

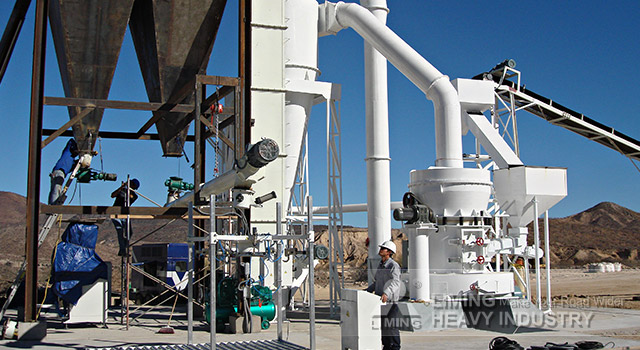

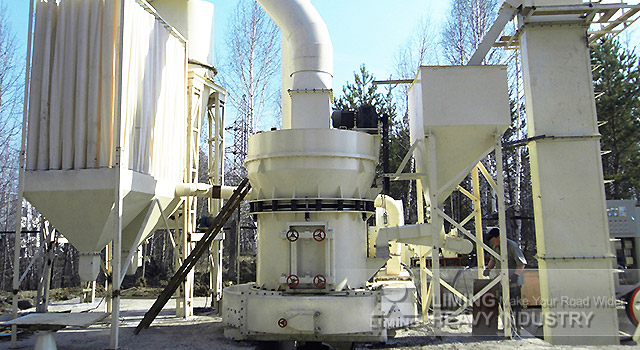

Mill Gallery:

Model Max feeding size(mm) Output fineness (mm) Capacity (t/h)
TGM100 25 1.6~0.045 the finest 0.038 3~8.8
TGM130 30 1.6~0.045 the finest 0.038 6~13
TGM160 35 1.6~0.045 the finest 0.038 13~22
TGM130X 30 0.074~0.038 4~13

1. Highly reduce the consumption of flexible connections, reduces vibration and noise, improve the service life of equipment.

2. Efficient powder sorting device, the capacity increased by 10% -15% under the same power.

3. Innovative grinding roller and ring design, reduce the speed of material decline, extending the material rolling time and improve the finished product fineness and yield.

1. Large materials are crushed by jaw crusher to the needed sizes firstly, then the materials are elevated to storage hopper by bucket elevator, third, the materials are fed into the grinding chamber for grinding by vibrating feeder equably and continuously.

2. The powder after grinding goes upwards together with the airflow, after separating by powder separator, those which can meet the fineness requirement enters into the cyclone powder collector through pipe together with the airflow, and then discharged from the discharge valve as final products.

3. The airflow is sucked into centrifugal blower through wind recycling pipe at the upper part of cyclone powder collector.

4. The mainframe is driven by the speed reducer through the central axis in the mill.
